EER Outdoor Type Rack Cabinets

EER Rack cabinets have been developed for Telecom and GSM applications and Railway and Energy management and monitoring applications. It is designed to protect expensive electronic equipment to last in the harshest environmental conditions against sunlight, rain, snow, vandalism, dust and temperature fluctuations.


Special purpose Outdoor type Rack cabinets,
Main frame made of galvanized mild steel up to 3 mm
Reinforced side panels with special bending
19” Rack Carrier Frame,
Doors reinforced with internal insulation materials,
Covers and panels with temperature and sound insulation
High Protection class up to IP66
Application of self clinching fasteners to the cabin body with high-capacity hydraulic presses.(PEM)
Covers that cannot be removed from the outside,
Reinforced lock solution with sabotage and vandalism protection
Special air conditioning and ventilation solutions,
Panel heater options for cold environments,
Internal Battery Rack option
Zinc coating Solutions against Rust and Oxidation
Primer Painting for Outdoor Type applications,
Epoxy-Polyester Powder Paint suitable for outdoor use,
Flexible cabling and Bus-Bar solutions
Project-based production in special sizes

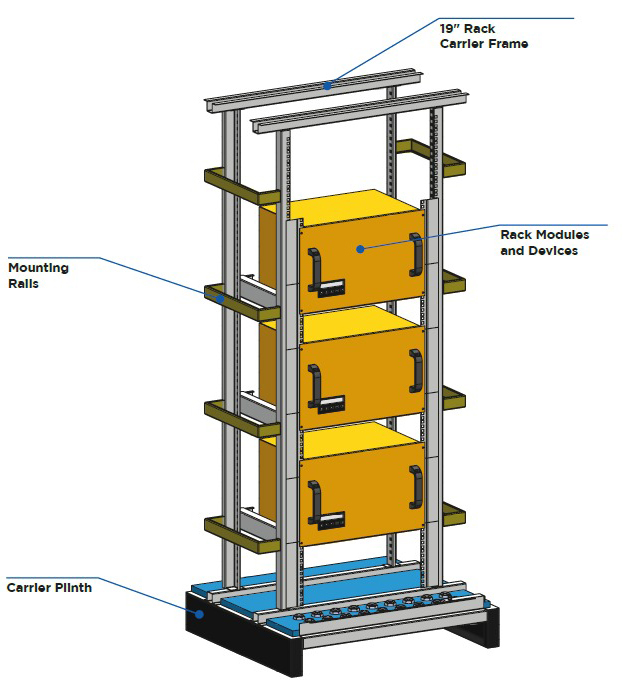

Rack Carrier Body and Mounting Rails

It is manufactured from galvanized mild steel from 2mm to 3.0mm depending on cabinet size. It consists of profiles and other carrier parts suitable for connecting 19” Rack modules. It has been painted with primer paint and Epoxy-Polyester outdoor paint in order to withstand external ambient conditions for a long time.
Apart from the rack mounting frame and standard mounting rails, mounting plates, mounting consoles and special mounting profiles are designed and produced according to the project requirement.




Notes
  • Special areas are left for cable carrying on the right and left sides of the 19” rack carriers.
  • Rack modules are not included in the cabinet. It is produced separately in accordance with customer needs.
  • Necessary accessories for cable carrying and equipment connection must be ordered separately.
  • Mounting plates and mounting consoles must be ordered separately.

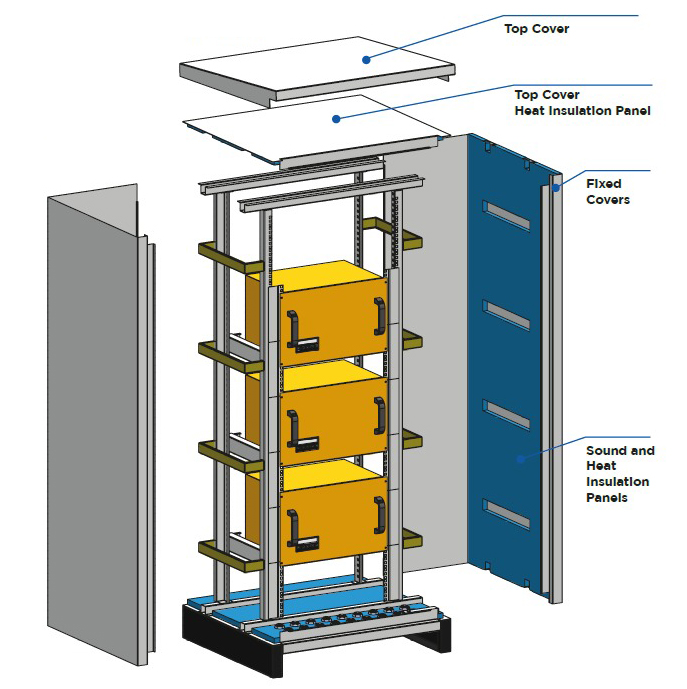

Fixed Covers

Depending on the project requirement and cabinet size, it is produced from 1.5mm-2mm galvanized mild steel and painted with epoxy-polyester outdoor paint.
Fixed covers are specially designed to protect against vandalism and security risks. The covers are in a structure that cannot be removed from the outside. Access to the cover screws is possible after the front cover has been opened.
The internal surfaces of the covers are covered with a special insulation material for heat and sound. Heat and sound insulation materials are selected in accordance with the project needs and customer demands.
Special tight-fit fastening nut and fastening screw (PEM) solution is used for mounting accessories and equipment on the cover.
Polyurethane gasket can be applied directly to the door surface to increase the resistance of impermeability and vibration on all doors.





Notes
  • Heat and sound insulation application must be ordered separately.
  • There is no heat and sound insulation in standard fixed covers .
  • Fan module or special air conditioning request for the top cover must be stated separately.
  • A drawing in DWG format should be given for the desired ventilation grills and cut-outs on the fixed cover.
  • Polyurethane cast gasket has been applied to the covers for impermeability and protection against vibration.
  • Please contact with the sales representative for special type of ventilation grills or forming requests and other special requests.

Doors

Standard doors are produced from 1.5mm – 2mm galvanized mild steel and painted with epoxypolyester outdoor paint. It can be produced in different features according to the project needs.
The doors are equipped with a multi-point clutch espagnolette lock system for vandalism and sabotage protection.
The internal surfaces of door are covered with special insulation material for heat and sound.
Heat and sound insulation materials are selected in accordance with the project needs and customer demands.

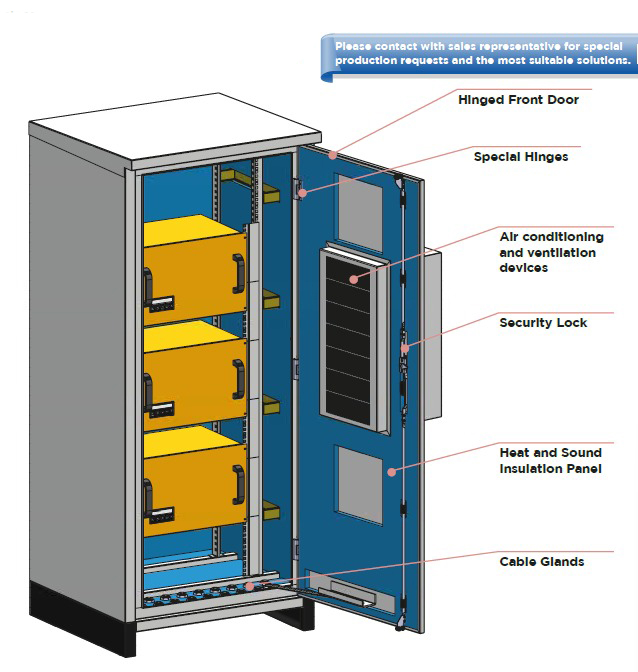

It is designed to place air conditioners or special ventilation units on the doors. It is supported with special hinges to carry heavy equipment.
Application of self-clinching fasteners (PEM) with high-capacity hydraulic presses for mounting accessories and equipment on the door.




Notes
  • Ventilation solutions to be used in the doors must be stated at the time of order.
  • The use and features of heat and sound insulation aredetermined by the customer.
  • There is no cut-out in standard doors. Drawing in DWG format should be given for the desired ventilation grills and cut-outs on the door.
  • For the mounting of accessories on the door, The requirements and details of the fastening nut and fastening screw are given by the customer and ordered separately.
  • Polyurethane cast gasket has been applied to the doors for impermeability and protection against vibration.
  • Please contact with the sales representative for special type of ventilation grills or forming demands and other special requests.
  • Standard hinges and locks are supplied with the cabinet.
Cover Plate Rail Set

Cover plate rail sets and cover plates designed to prevent direct contact are produced from 1mm mild sheet and painted with epoxy-polyester powder coating. Cover plate rail set is produced as a set in cabin size.
Cover plates are produced in 3 types as with ventilation grill, with cut-outs suitable for DIN rail equipment and straight. Standard cover plates are produced in accordance with fixed screwing and hinged connection






Notes
  • The cover plate Rail set should be ordered in accordance with the cabinet width and height dimensions.
  • Cover plates are ordered separately in desired dimensions.
  • Ventilation grill and cut-out requests on the cover plates must be specified at the time of order.
  • Hinges and lock sets are optional for cover plates.It must also be ordered.
Accessories
  • Mounting screws for the cover plate rail set are given together as a set.
  • The screws required for mounting the cover plates are supplied with the cover plate.



Notes
  • The total height of the cover plates should be 125mm shorter than the cabinet height.
  • The height of the example cabinet above is 1800mm. The total height of the cover plates is 1675mm.
  • Cover plates with ventilation grill have -P at the end of the order code.
  • Cover plates with DIN rail equipment holes have -W at the end of the order code.
EER Outdoor Type Rack Cabinets EER Rack cabinets have been developed for Telecom and GSM applications and Railway and Energy management and monitoring applications. It is designed to protect expensive electronic equipment to last in the harshest environmental conditions against sunlight, rain, snow, vandalism, dust and temperature fluctuations.
It is produced in different sizes and with special equipment mounting accessories for projects. It has air conditioning and ventilation options suitable for project requirements and security options against vandalism in high protection class up to IP65.


Applications
  • Telecom Applications,
  • GSM infrastructure solutions
  • Industrial data center
  • City security and camera systems
  • Medical device and infrastructure applications

Rack Carrier Body and Mounting Rails

It is manufactured from galvanized mild steel from 2mm to 3.0mm depending on cabinet size. It consists of profiles and other carrier parts suitable for connecting 19” Rack modules. It has been painted with primer paint and Epoxy-Polyester outdoor paint in order to withstand external ambient conditions for a long time.
Apart from the rack mounting frame and standard mounting rails, mounting plates, mounting consoles and special mounting profiles are designed and produced according to the project requirement.




Notes

  • Special areas are left for cable carrying on the right and left sides of the 19” rack carriers.
  • Rack modules are not included in the cabinet. It is produced separately in accordance with customer needs.
  • Necessary accessories for cable carrying and equipment connection must be ordered separately.
  • Mounting plates and mounting consoles must be ordered separately.

Fixed Covers

Depending on the project requirement and cabinet size, it is produced from 1.5mm-2mm galvanized mild steel and painted with epoxy-polyester outdoor paint.
Fixed covers are specially designed to protect against vandalism and security risks. The covers are in a structure that cannot be removed from the outside. Access to the cover screws is possible after the front cover has been opened.
The internal surfaces of the covers are covered with a special insulation material for heat and sound. Heat and sound insulation materials are selected in accordance with the project needs and customer demands.
Special tight-fit fastening nut and fastening screw (PEM) solution is used for mounting accessories and equipment on the cover.
Polyurethane gasket can be applied directly to the door surface to increase the resistance of impermeability and vibration on all doors.





Notes
  • Heat and sound insulation application must be ordered separately.
  • There is no heat and sound insulation in standard fixed covers .
  • Fan module or special air conditioning request for the top cover must be stated separately.
  • A drawing in DWG format should be given for the desired ventilation grills and cut-outs on the fixed cover.
  • Polyurethane cast gasket has been applied to the covers for impermeability and protection against vibration.
  • Please contact with the sales representative for special type of ventilation grills or forming requests and other special requests.

Doors

Standard doors are produced from 1.5mm – 2mm galvanized mild steel and painted with epoxypolyester outdoor paint. It can be produced in different features according to the project needs.
The doors are equipped with a multi-point clutch espagnolette lock system for vandalism and sabotage protection.
The internal surfaces of door are covered with special insulation material for heat and sound.
Heat and sound insulation materials are selected in accordance with the project needs and customer demands.
It is designed to place air conditioners or special ventilation units on the doors. It is supported with special hinges to carry heavy equipment.
Application of self-clinching fasteners (PEM) with high-capacity hydraulic presses for mounting accessories and equipment on the door.




Notes
  • Ventilation solutions to be used in the doors must be stated at the time of order.
  • The use and features of heat and sound insulation aredetermined by the customer.
  • There is no cut-out in standard doors. Drawing in DWG format should be given for the desired ventilation grills and cut-outs on the door.
  • For the mounting of accessories on the door, The requirements and details of the fastening nut and fastening screw are given by the customer and ordered separately.
  • Polyurethane cast gasket has been applied to the doors for impermeability and protection against vibration.
  • Please contact with the sales representative for special type of ventilation grills or forming demands and other special requests.
  • Standard hinges and locks are supplied with the cabinet.
